Beskrivelse

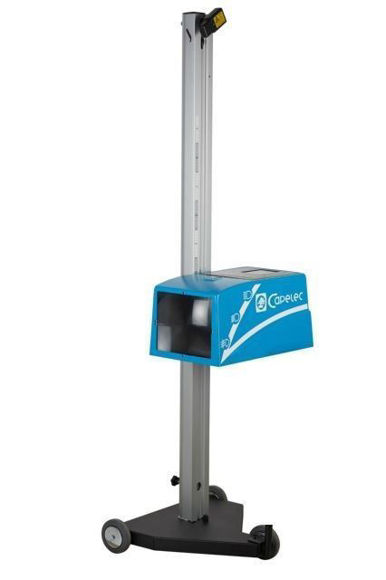

Elektronisk lysjusteringsapparat med trykkskjerm
Elektronisk lysjusteringsapparat fra den franske produsenten Capelec
Trykkskjerm med farge.
Leveres som standard med hjul, men kan også bestilles på skinner.
Håndtak og beskyttelsescover er ekstrautstyr.
Info fra produsenten:
CAP2600 electronic headlamp tester is connected, modular and accurate.
Dual mode : inspection (Roadworthiness, PTI), adjustment
Headlamp adjustment, beam setters : low beam, high beam and for lamp
Lighting technologies : Xenon, LED, filament
Color touch screen
Linux OS
S2600 software
Multilingual
Alignment laser
Positioning assistance
Connectivity: wired, wifi
Types of headlamps: fog, low and high beam
Measurements and values: cutoff, lateral, light intensity, glare,
Level compensation
Left and right-hand drive
SPECIFICATION
Weight : 25kg
L x l x H : 590 x 670 x 1 850 mm
Quick recharge in 3h30 with automatic stop
Thermal printer
Column : 1,80 m
Ports : RS, USB, RJ45, wifi
AFS MODE
The Advanced Frontlighting System (AFS) advanced function allows the adjustment, calibration and parameter setting of MATRIX LED (VAG) headlights. It must be associated with a manufacturer's diagnostic tool and follow the procedure.
MEASUREMENT
Cut-off measurement : -6/+6 %
Side deviation : -10/+10 %
Yall angle : -90/+90°
Roll angle : -90/+90°
Light intensity measurement : Lux 0/200 lx or Candela 0/12 500 cd
Accuracy : Lux 5%
OPERATION CONDITION
Battery : Lithium
Autonomy : 10h
Charger ower supply: 9V 2A
Ambient temperature: from 5 to 40°C
Storage temperature : -15 à +55°C
Relative humidity : < 98%
Vehicle range : automotive, HGV, motorcycle
OPTIONS
- Guiding handle
- Protective cover
- Base conversion kit
- Screen protection
- Mirror
- Storage cover
VERSIONS
- Base : wheel and rails
Brukermanual kan du finne her.
Quick start guide kan du finne her.
Katalog fra produsenten kan du finne her.
